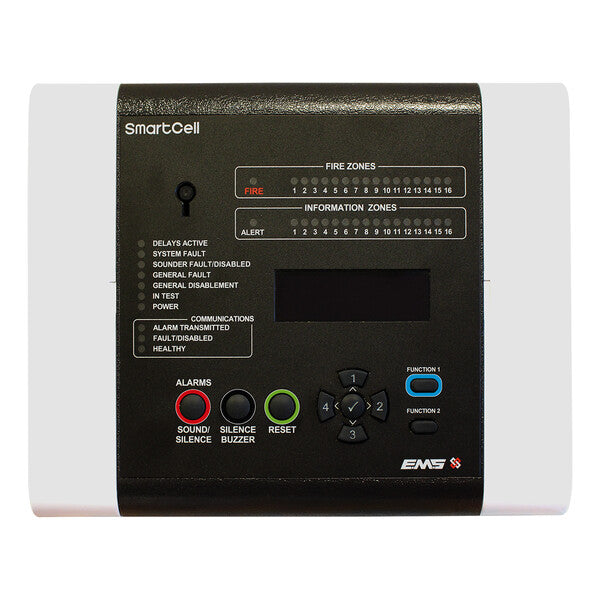

The SmartCell Wireless Fire Control Panel is the central control unit for the SmartCell wireless fire detection system, providing a flexible, professional solution for smaller commercial properties, residential applications and other buildings where a conventional hardwired fire alarm installation may be disruptive or impractical.
SmartCell uses robust 868–870 MHz wireless communication, avoiding the extensive cabling normally associated with a conventional fire alarm system. The system provides two-way communication between the control panel and wireless devices, with faults and low-battery conditions reported back to the panel.
The system can incorporate SmartCell smoke and heat detectors, sounders, visual alarm devices, manual call points and other wireless devices, allowing a system to be designed around the requirements of the property. SmartCell supports up to 32 fire devices, with the wider system capable of supporting up to 64 devices when information devices are included.
The SmartCell control panel is not a standalone smoke alarm. It forms the central component of a complete wireless fire detection system and must be correctly designed, configured and commissioned with compatible SmartCell devices.
For this reason, we recommend purchasing the panel together with professional installation and system design advice from Safe & Smart.
| Specification | SmartCell Wireless Control Panel |
|---|---|
| Model | SC-11-1201-0001-99 |
| System type | Wireless fire detection control panel |
| Maximum fire devices | 32 |
| Maximum system capacity | Up to 64 devices including information devices |
| Zone indicators | 16 |
| Display | 80-character OLED |
| Power supply | 230V AC |
| Operating voltage | 220–240V AC, 50Hz |
| Rated current | 0.3A |
| Standby battery | 6V 4Ah |
| Wireless frequency | 868–870 MHz |
| Transmitter power | 14dBm max / 25mW |
| Dimensions | 275 × 220 × 80mm |
| Weight | 1.55kg |
| Mounting | Surface mount |
| Cable entries | 4 × 100mm bottom / 4 × 100mm rear |
| Operating temperature | -5°C to +45°C |
| Maximum relative humidity | 95%, non-condensing |
| Environment | Indoor |
| IP rating | IP30 |
| Standards | EN54-2, EN54-4, EN54-13, EN54-25 |
| Certification | CE / CPR |
Technical specifications are taken from the SmartCell product documentation.
The SmartCell panel can accommodate an optional communications module, allowing the system to be connected for remote services and alarm routing.
SmartCell's remote services can provide features such as remote configuration and system information, while suitable communications equipment can also be used for connection to an Alarm Receiving Centre where required.
Communications modules are not included with this panel unless specifically stated.
We offer professional installation and commissioning of SmartCell systems.
The £500.00 inc VAT installation price is a best estimate for a straightforward installation and is subject to survey.
The final installation cost will depend on:
Hardwired electrical work and more complex installations are subject to survey.
If the survey identifies additional requirements that change the installation price, we'll explain these to you before carrying out the work.
Traditional wired fire alarm systems can require significant cable installation, disruption and making-good. SmartCell's wireless architecture can significantly simplify installation while providing a professional, standards-based fire detection system.
Its wireless communication operates in the 868–870 MHz band and is designed specifically for wireless fire systems rather than relying on ordinary Wi-Fi. SmartCell states that its wireless system is designed to meet the requirements of EN54-25 for wireless fire detection systems.
This product is a control panel and is not a complete fire alarm system by itself.
A suitable system requires compatible SmartCell devices and professional design, configuration and commissioning appropriate to the property.
For advice on designing a SmartCell system for your home or business, contact Safe & Smart before purchasing.
